Solar mounting systems are the metal structures that fix PV modules to a pitched roof, a flat roof, the ground or a carport and carry wind and snow loads over the life of the installation. PROTEC Sp. z o.o. is an OEM manufacturer of solar mounting system components in Chróścice, Poland - roof hooks, ballast consoles, wind deflectors, brackets and aluminium profile parts produced to the drawing of PV system brands, also from customer-supplied material.

Main system types pitched roof, flat roof (ballasted or fixed), ground-mounted, carport and façade
Typical metal components roof hooks, rails and profiles, ballast consoles, wind deflectors, brackets, connectors
Typical materials Magnelis (ZM200, ZM310, ZM420), galvanised steel DX51D, stainless steel, aluminium profiles
PROTEC role OEM and private label production of components to the customer's drawing
Certificates ISO 9001, ISO 14001, ISO 45001, EN 1090-2 EXC2, EN ISO 3834-2, VDA 6.3 (TÜV Rheinland)

What are solar mounting systems?

A solar mounting system is the complete set of metal parts that connects PV modules to the supporting structure: anchoring elements (roof hooks, ballast or foundations), load-bearing rails or consoles, and clamps and fasteners that hold the modules. The system must transfer wind uplift and snow loads to the building or the ground without damaging the roof covering. Mounting system brands design the system and its static calculation; the metal components are often produced by OEM manufacturers such as PROTEC.

What types of solar mounting systems are there?

Solar mounting systems are grouped by the surface they are installed on, and each type relies on a different set of metal components.

System type Typical use Key metal components
Pitched roof houses, tile, slate and shingle roofs roof hooks, rails, clamps
Flat roof, ballasted commercial and industrial halls, no roof penetration ballast consoles, wind deflectors, connectors

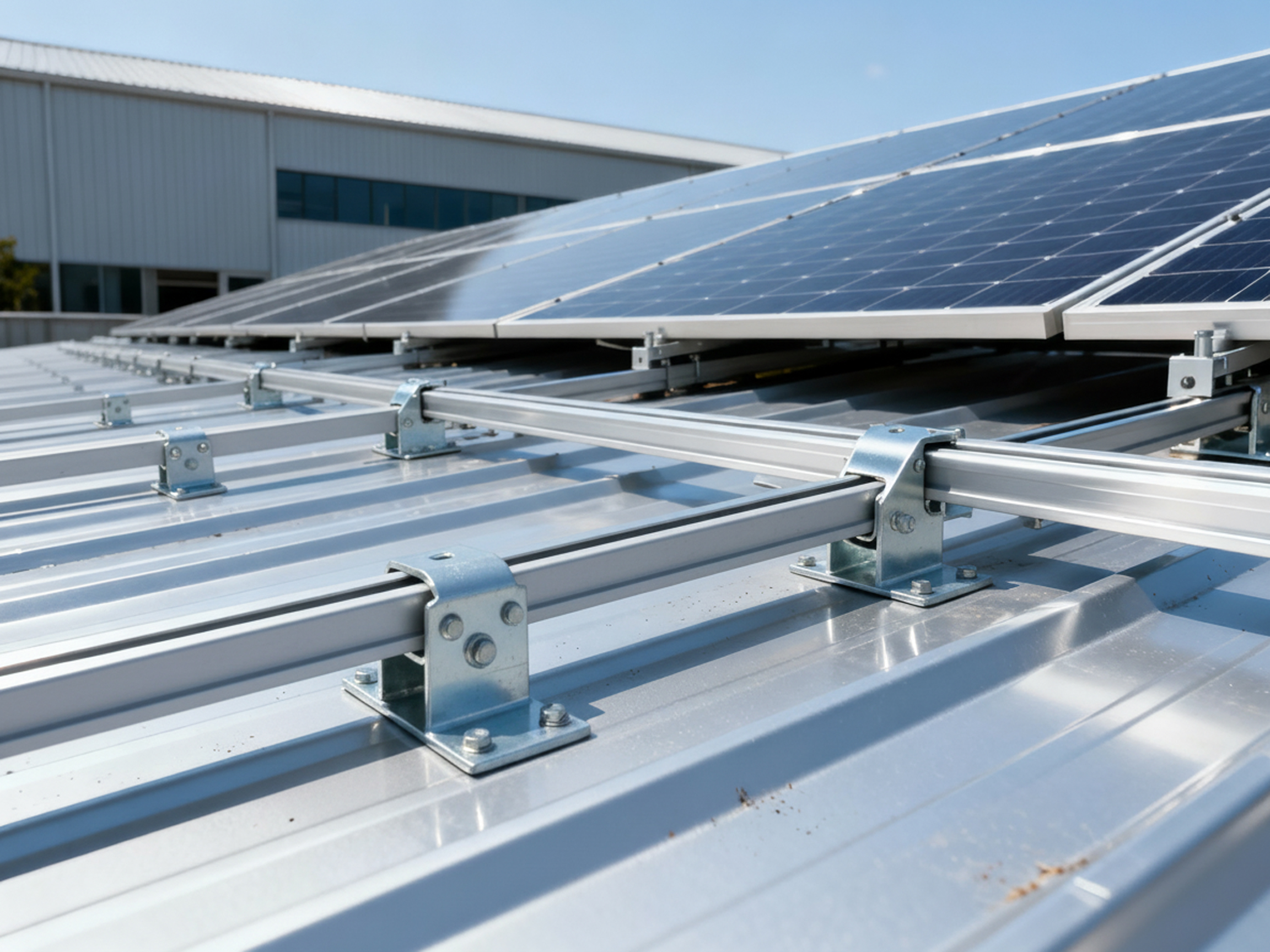

Metal roof trapezoidal sheet and standing seam short rails, brackets, seam clamps
Ground-mounted solar farms and larger commercial arrays posts, purlins, connection plates, braces
Carport and façade parking areas, building envelopes welded frames, brackets, profiles

Which metal components does PROTEC manufacture for PV mounting systems?

PROTEC manufactures the stamped, bent, cut and welded components of solar mounting systems for PV system brands and distributors:

  • Solar roof hooks for tile, slate and shingle roofs - including stainless steel hooks in 1.4301 and 1.4016
  • Ballast system components - load-bearing consoles and brackets for flat roofs
  • Wind deflectors for ballasted flat-roof systems
  • brackets, connection plates and connectors for ground and carport structures
  • aluminium profile parts - cut to length, machined, punched and perforated on a CNC profile centre
  • pre-assembled and packed mounting kits under the customer's brand

Which materials are used in solar mounting systems?

Material choice decides the corrosion resistance and service life of a solar mounting system, so it is set by the system designer for each environment. PROTEC processes all common PV materials:

Material Typical PV use
Magnelis (ZM200, ZM310, ZM420) ballast consoles, wind deflectors, rails - zinc-magnesium coating used across the PV industry
Galvanised steel DX51D wind deflectors, brackets, secondary parts
Stainless steel roof hooks and fasteners; grade agreed per project
Aluminium profiles rails and module support profiles

Mixing metals in contact (for example galvanised steel directly on copper) can cause galvanic corrosion, so connectors and fasteners should match the main material of the system.

What do commercial flat-roof solar mounting systems need?

Commercial solar mounting systems on flat roofs are usually ballasted: concrete blocks hold the structure in place, so the roof membrane is not penetrated. The metal parts of such a system are load-bearing consoles in Magnelis, connectors and wind deflectors that reduce wind uplift at the back of the module rows. Because every system brand uses its own geometry and tilt angle, these parts are produced to the brand's drawing rather than from a catalogue - which is the work PROTEC does as an OEM supplier.

How does PROTEC manufacture PV mounting components?

PROTEC produces solar mounting components in its own plant in Chróścice near Opole, from die to packed kit:

Process Capability
Tooling dies made in PROTEC's own toolroom
Stamping mechanical presses up to 400 t, hydraulic up to 450 t, stamping lines fed from coil up to 10 mm
Laser cutting sheets 1500 x 3000 mm, steel up to 20 mm; coil-fed laser up to 2 mm
CNC bending press brakes up to 160 t, 3000 mm length, up to 15 mm
Aluminium profiles CNC centre for cutting, machining, punching and perforating
Welding robotic MIG/MAG, manual TIG, EN ISO 3834-2
Assembly and packing automatic stations for assembly and packing of PV mounting elements

Components can be supplied under the customer's brand as OEM and private label production, and PROTEC also manufactures from material supplied by the customer.

What should you check when choosing a manufacturer of PV mounting components?

  • certified quality system - ISO 9001, and EN 1090-2 with EN ISO 3834-2 for load-bearing and welded parts
  • experience with Magnelis and stainless steel, including the ZM coating class your system uses
  • own toolroom, so die changes and new variants do not depend on a third party
  • stamping and bending capacity for the thickness and length of your consoles and rails
  • assembly and packing of kits under your brand
  • option to produce from your own material

More about PROTEC's work for the photovoltaic industry: metal components for solar PV.

FAQ - solar mounting systems

What is a solar mounting system?

A solar mounting system is the set of metal parts - anchors, rails or consoles, clamps and fasteners - that fixes PV modules to a roof, the ground or a carport and transfers wind and snow loads to the supporting structure.

What types of solar mounting systems are used on commercial buildings?

Commercial buildings mostly use ballasted flat-roof systems, which do not penetrate the roof membrane, and rail or bracket systems on trapezoidal and standing-seam metal roofs. Larger sites also use ground-mounted and carport structures.

Does PROTEC manufacture solar mounting system components?

Yes. PROTEC Sp. z o.o. is a manufacturer of solar mounting system components - roof hooks, ballast consoles, wind deflectors, brackets and aluminium profile parts - produced as OEM and private label to the drawing of PV system brands.

Is PROTEC a supplier for solar panel mounting system manufacturers?

Yes. PROTEC supplies solar panel mounting system manufacturers and distributors with metal components produced to their drawings - roof hooks, ballast consoles, wind deflectors, brackets and aluminium profile parts - with dies from its own tooling department, stamping on presses up to 450 t and worldwide delivery. PROTEC does not sell complete PV systems to end users.

Which materials does PROTEC use for PV mounting components?

PROTEC processes Magnelis in classes ZM200, ZM310 and ZM420, galvanised steel DX51D, stainless steel (grade per project, e.g. 1.4301 and 1.4016 for roof hooks) and aluminium profiles.

Can PROTEC produce PV mounting parts from customer-supplied material?

Yes. PROTEC manufactures ballast components, wind deflectors and other PV parts both from its own material and from coil or sheet supplied by the customer.

Can PROTEC deliver assembled and packed mounting kits under our brand?

Yes. PROTEC has automatic stations for assembly and packing of PV mounting elements and supplies components and kits as private label under the customer's brand.

Which certificates does PROTEC hold?

PROTEC is certified by TÜV Rheinland to ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, EN 1090-2 (EXC2), EN ISO 3834-2 and VDA 6.3.
